UHF Full Duplex Transceiver Video Transmission 24V~30V

Name: UHF Full Duplex Transceiver Video Transmission 24V30V
Brand: Hincn
Price: 2 USD

Buy cheap UHF Full Duplex Transceiver Video Transmission 24V~30V product

Brand Name : Hincn

Model Number : HCL605-5

Place of Origin : China

MOQ : 1 set

Price : US$2,255~US$2,555

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 600pcs/month

Delivery Time : 7~14 working days

Packaging Details : Canned and packaged in cardboard boxes

Frequency : 566~678MHz and 1420~1530MHz

Sensitivity : -102dBm(1Mbps at 20MHz)

Network mode : Mesh

Power input : 24~30V

OEM&ODM : Support

Warranty : 1 year warranty and lifetime maintenance

Contact Now

TDD Full Duplex Transceiver Video Transmission Combat Radio Communication System

Key Features:

TDD OFDM full duplex transceiver for video data transmission.
Up to 100Mbps Iperf Throughput.
Supports Mesh Networks.
With flexible channel bandwidths (1.4MHz, 3MHz, 5MHz, 10MHz, 20MHz, 40MHz).
Interface through web browser or control uart.
3 Ethernet port and 1 channel RS232/TTL to meet various data transmission requirements.
Maximum 100km wireless video data transmission.
Dual power supply with 5W*2 RF power.

Overview:

The HCL605 full duplex transceiver is a device specificallly designed for long range wireless transmission of video data. This OFDM radio operates in the 600MHz or 1.4GHz frequency bands, and employs frequency hopping spread spectrum technology (FHSS) to ensure higher stability of UAV signal communication even in rapid movement condition.

Technical Specifications:

TDD Full Duplex Transceiver Video Transmission Combat Radio Communication System
Modulation	TDD OFDM
Frequency	566~678MHz and 1420~1530MHz
Bandwidths	1.4MHz, 3MHz, 5MHz,10MHz, 20MHz, 40MHz
Throughput	Maximum 100Mbps
RF transmission Power	5W *2( dual power supply, each 5W of the 2 antennas)
Constellation	QPSK,16QAM,64QAM, self-adaption
Sensitivity	-102dBm(1Mbps at 20MHz)
IP data transmission	3 Ethernet port
Serial data transmission	1 channel RS232 or TTL
Transmission range	2~10km( ground to ground), maximum 100km( UAV to ground)
Management	Trough Web UI or Control uart
Encryption	AES128-bit encryption
Network mode	Mesh
Movement speed	Support maximum 300km/h
Power input	24~30V
Power consumption	<2A at 12V
Dimensions	113.983.723.3 mm
Weight	243g

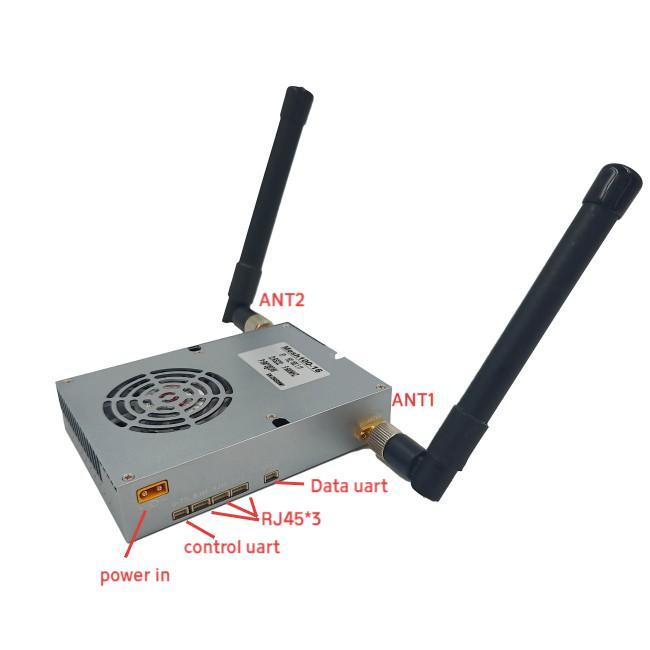

UHF Full Duplex Transceiver Video Transmission 24V~30V

Input/ Output	Description
Ethernet	3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART	RS232 data UART(RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART	TTL control UART, 3PIN PH1.25mm connector
Power in	XT30PW-M connector
ANT 1	Tx/Rx Antenna port, SMA female
ANT 2	Tx/Rx Antenna port, SMA female

Wireless networking with HCL605-5W UAV video data link:

Mesh transmitting

UHF Full Duplex Transceiver Video Transmission 24V~30V

This HCL605 5W full duplex transceiver supports mesh network with maximum 32 nodes and shared maximum 100Mbps Iperf Throughput. Here we recommended the version maximum support 4 nodes- 2 hops and shared 60Mbps. Price is much more competitive.

FAQ

Q1. Does this full duplex transceiver support any other cameras except IP camera?

A: IP camera video can be connected with HCL605 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL605 via Ethernet connection.
